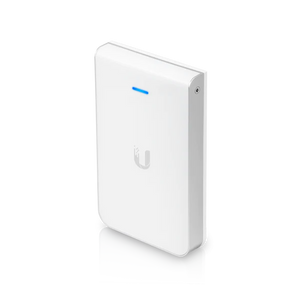

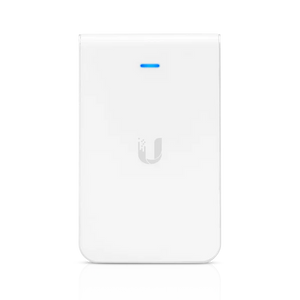

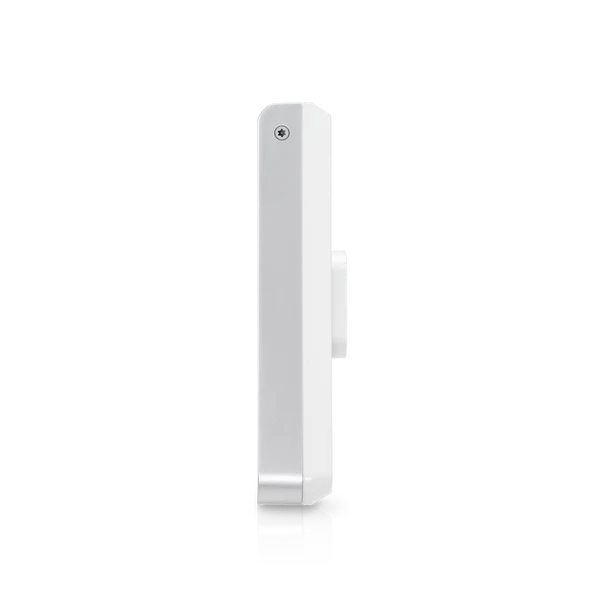

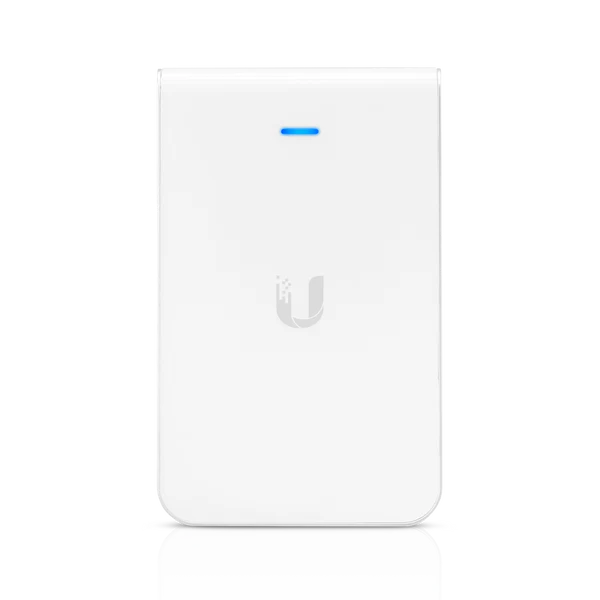

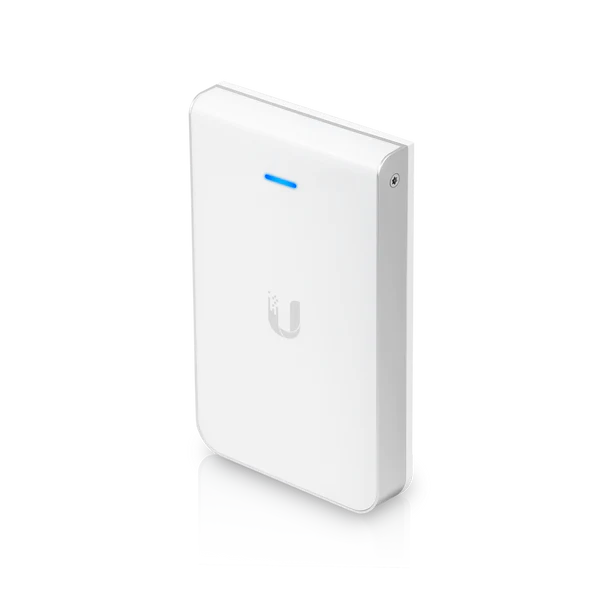

UAP-IW-HD-US
Dual-band, 802.11ac Wave 2 access point with a 2+ Gbps aggregate throughput rate that can be plugged into any non-AC wall outlet.

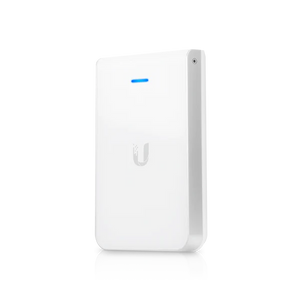

The Access Point In-Wall HD (UAP IW HD) is a dual-band, 802.11ac WiFi access point that can be plugged into any non-AC wall outlet. The UAP IW HD can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 200 concurrently connected clients. This access point is powered by 802.3af PoE* and is equipped with (5) GbE RJ45 ports, including one for configurable 48V PoE passthrough. The UAP IW HD is the perfect plug-and-play access point for those looking for an easy-to-use, inconspicuous way to broaden their wireless coverage. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
- 5 GHz (4x4 MU-MIMO) band with a 1.733 Gbps throughput rate
- 2.4 GHz (2x2 MIMO) band with a 300 Mbps throughput rate
- 200+ concurrent client capacity
- Powered by 802.3af PoE*

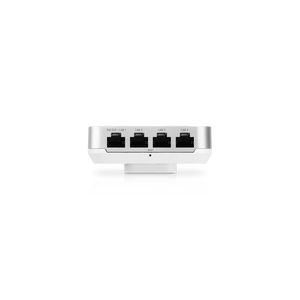

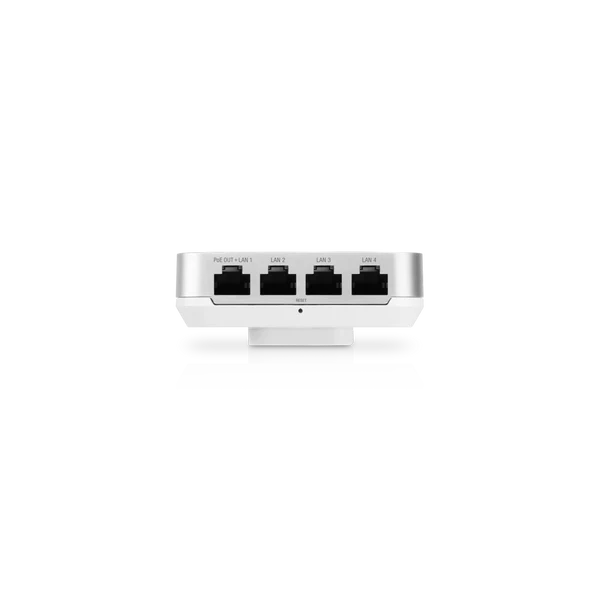

- (5) GbE RJ45 ports, including (1) for configurable PoE passthrough (Port 1)
 |
Managed with the UniFi Network application |
| Mechanical | |
|---|---|
| Dimensions | 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01") |
| Weight | 210 g (7.41 oz) |
| Networking Interface | (5) 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Power Method | 802.3af PoE 802.3at PoE+ |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | UniFi Switch (PoE) |
| PoE Out | 48V Passthrough (Pins +1, 2; -3, 6) |
| Power Save | Supported |
| Beamforming | Supported |
| Maximum Power Consumption with PoE Passthrough |
11W 23W (* Requires 802.3at PoE+ switch) |
| TX Power 2.4 GHz 5 GHz |
23 dBm 26 dBm |
| Dual-Band Antennas | (2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each |
| Single-Band Antennas | (2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per Radio |

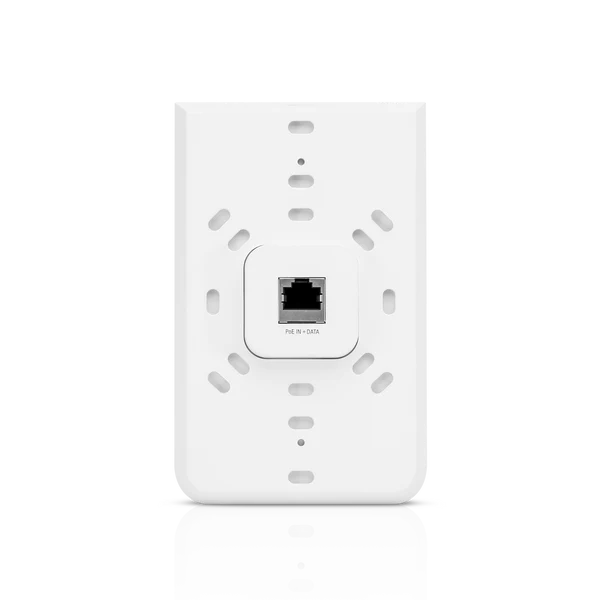

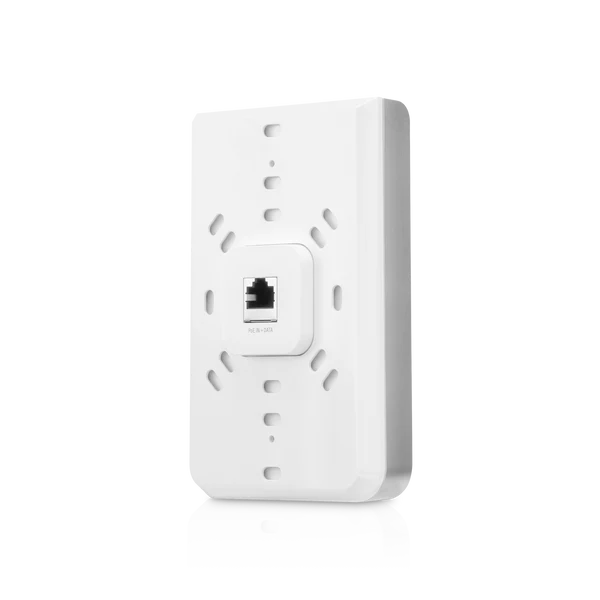

| Mounting | 1-Gang Electrical Wall Box (Not Included) |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
