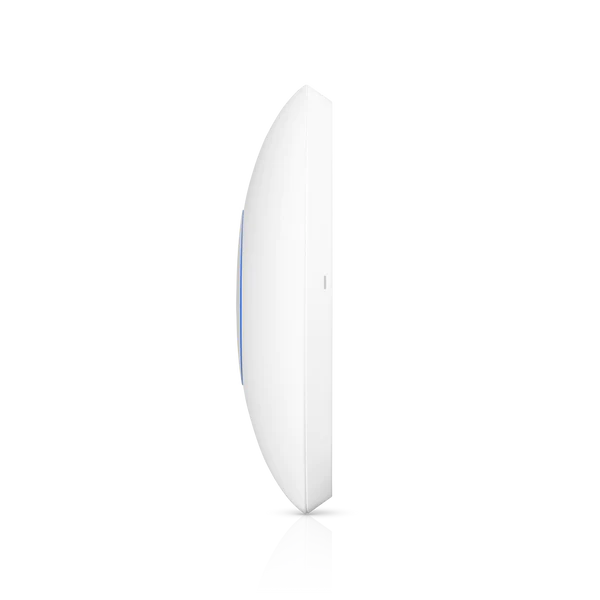

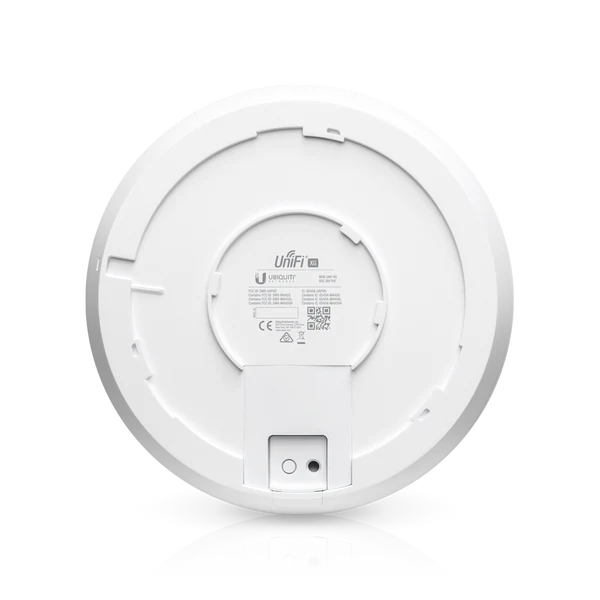

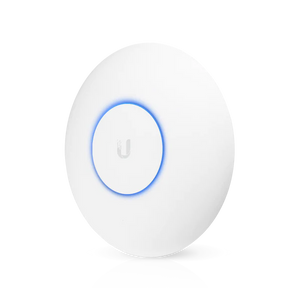

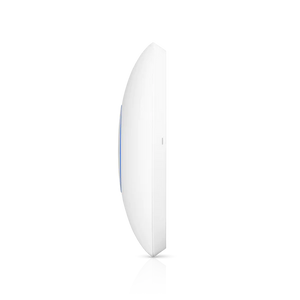

UAP-XG-US
Dual-radio, 802.11ac Wave 2 access point designed to support high-density networks.
The Access Point XG (UAP XG) is a high-capacity, 802.11ac Wave 2 access point with (2) 5 GHz (4x4 MU-MIMO) radios that can reach a 3.466 Gbps aggregate throughput rate and supports up to 1,500 clients. This access point is powered by 802.3bt PoE++ and features (1) GbE RJ45 port and (1) 10GbE ICM Ethernet port to facilitate a range of connections. The UAP XG can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
- (2) 5 GHz (4x4 MU-MIMO) radios
- 3.466 Gbps aggregate throughput rate over the 5 GHz band
- 2.4 GHz (4x4 MIMO) band with a 800 Mbps throughput rate
- 1,500-client limit
- Powered by 802.3bt PoE++ (PoE injector included)
- (1) GbE RJ45 port
- (1) 10GbE ICM Ethernet port
 |
Managed with the UniFi Network application |
| Mechanical | |
|---|---|
| Dimensions | 228 x 228 x 50 mm (8.98 x 8.98 x 1.97") |
| Weight Without Mount With Mount |
1.2 kg (2.65 lb) 1.35 kg (2.98 lb) |

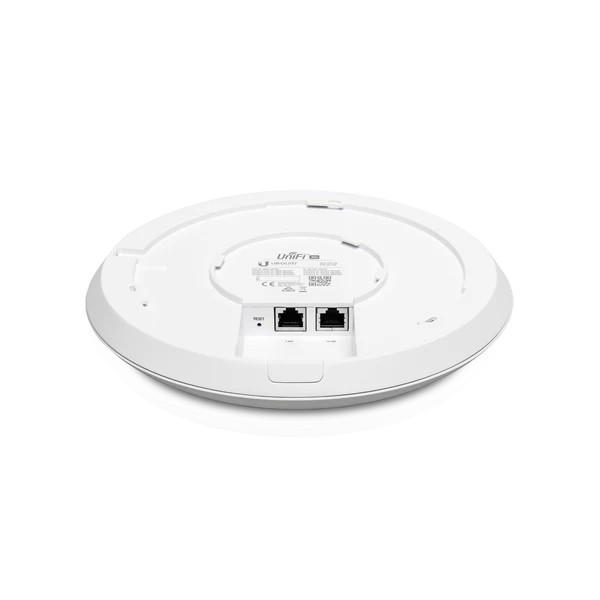

| Networking Interface | (1) 10/100/1000 RJ45 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port |
| Buttons | Reset |
| Power Method | PoE 802.3bt |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | PoE Injector 50VDC, 1.2A Gigabit |
| Power Save | Supported |
| Beamforming | Supported |
| Max. Power Consumption | 31W |
| Radios | 2.4 GHz radio 5 GHz low-band radio, ch 36-64 5 GHz high-band radio, ch 100-165 2.4/5 GHz security radio |
| Max. TX Power 2.4 GHz 5 GHz |
25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
| Radio Rates 2.4 GHz 5 GHz |
800 Mbps 1.7 Gbps |
| Antennas 2.4 GHz 5 GHz |
(2) Dual-Port, Dual-Polarity Antennas, 6 dBi each (2) Dual-Port, Dual-Polarity Antennas, 8 dBi each |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling/Junction Box (Kits Included) |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1500 |
| Supported Data Rates (Mbps) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
UAP-XG-US
Dual-radio, 802.11ac Wave 2 access point designed to support high-density networks.
The Access Point XG (UAP XG) is a high-capacity, 802.11ac Wave 2 access point with (2) 5 GHz (4x4 MU-MIMO) radios that can reach a 3.466 Gbps aggregate throughput rate and supports up to 1,500 clients. This access point is powered by 802.3bt PoE++ and features (1) GbE RJ45 port and (1) 10GbE ICM Ethernet port to facilitate a range of connections. The UAP XG can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
- (2) 5 GHz (4x4 MU-MIMO) radios
- 3.466 Gbps aggregate throughput rate over the 5 GHz band
- 2.4 GHz (4x4 MIMO) band with a 800 Mbps throughput rate
- 1,500-client limit
- Powered by 802.3bt PoE++ (PoE injector included)
- (1) GbE RJ45 port
- (1) 10GbE ICM Ethernet port
|
|
Managed with the UniFi Network application |
| Mechanical | |
|---|---|
| Dimensions | 228 x 228 x 50 mm (8.98 x 8.98 x 1.97") |
| Weight Without Mount With Mount |
1.2 kg (2.65 lb) 1.35 kg (2.98 lb) |
| Networking Interface | (1) 10/100/1000 RJ45 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port |
| Buttons | Reset |
| Power Method | PoE 802.3bt |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | PoE Injector 50VDC, 1.2A Gigabit |
| Power Save | Supported |
| Beamforming | Supported |
| Max. Power Consumption | 31W |
| Radios | 2.4 GHz radio 5 GHz low-band radio, ch 36-64 5 GHz high-band radio, ch 100-165 2.4/5 GHz security radio |
| Max. TX Power 2.4 GHz 5 GHz |
25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
| Radio Rates 2.4 GHz 5 GHz |
800 Mbps 1.7 Gbps |
| Antennas 2.4 GHz 5 GHz |
(2) Dual-Port, Dual-Polarity Antennas, 6 dBi each (2) Dual-Port, Dual-Polarity Antennas, 8 dBi each |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling/Junction Box (Kits Included) |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1500 |
| Supported Data Rates (Mbps) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
