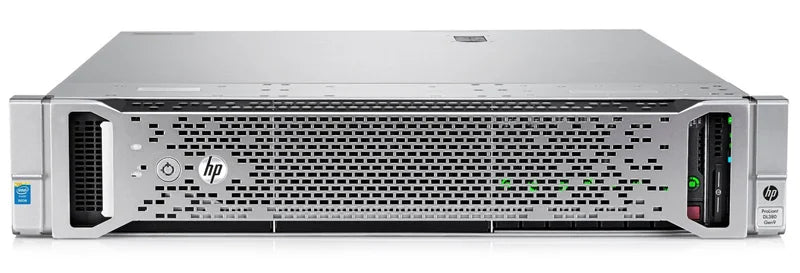

HPE 800078-S01 DL380 Gen9 Server
Configuration: E5-2697V3 Processors, 2 CPUs, 64GB RAM, 8-SFF

Processor & Chipset:
Processor Type: Intel Xeon E5-2697v3, 2.6GHz
Max Turbo Speed: 3.6GHz
QuickPath Interconnect: 9.60 GT/s
Number of Cores: 14-core
64-bit Computing: Yes
Compatible Processor Socket: FCLGA2011-3
Installed Quantity: 2
Maximum Supported Quantity: 2
Chipset Type: Intel C610 Series

Cache Memory:
Cache Memory Type: Smart Cache
Installed Size: 70MB
Cache Per Processor: 35MB

Memory:
Installed Size: 64GB (up to 768GB)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2133MHz
Rated Memory Speed: 2133MHz
Memory Specification Compliance: PC4-17000
Form Factor: DIMM 288-pin
Slots: 24 (total) / 20 (empty)
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP SmartMemory
Configuration Features: 4 x 16GB
RAM Supported: PC4-17000 - 768GB Registered, PC4-17000 - 1.5TB Load-Reduced

Storage & Storage Controller:
Hard Drive: None
Optical Drive Type: None

Storage Controllers:
Storage Controller Name: Smart Array P440ar
Buffer Size: 2GB
Disk Drive: 12GB/s SAS / 6GB/s SATA
SAS Port Link Rate: 12GB/s per Physical Link Supported
PCIe Link Rate: PCI Express 3.0 x8
Physical Drives Supported: Up to 26
Logical Drives Supported: Up to 64
RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Display & Graphics Controllers:
Type: Integrated
Graphics Processor: Matrox G200eh2
Video Memory: 16MB
Video Interfaces: VGA

Network & Communication:
Ethernet Ports: 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet
Ethernet Controller: HP 331i, HP 556FLR-SFP+
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity:
Expansion Bays Total (free): 8 x Hot-Swap 2.5 SFF (8 total, 8 free)
Expansion Slots Total (free): 24 x DIMM 288-pin (24 total, 20 free); 2 x CPU (2 total, 0 free); 2 x PCIe 3.0 x16 - Half-Length, Full-Height (X8 Mode) (2 total, 2 free); 1 x PCIe 3.0 x8 - Half-Length, Full-Height (1 total, 1 free); 1 x MicroSD Card (Internal) (1 total, 1 free)

Interfaces & Ports:
LAN (Gigabit Ethernet): 4 x RJ-45
HP iLO: 1 x RJ-45
VGA: 1
USB 3.0: 5 (1 Front, 2 Rear, 2 Internal)
LAN (10 Gigabit Ethernet): 2

Miscellaneous:
Included Accessories: HP Easy Install Rails
Features: Administrator Password, Power-On Password, Keyboard Password, Serial Port I/O Control, QuickLock, UEFI BIOS
Compliant Standards: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024

, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438
Manufacturer Selling Program: HP Smart Buy

Power Description:
Device Type: Power Supply - Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Quantity: 2
Maximum Supported Quantity: 2
Nominal Voltage: AC 120/230V
Power Provided: 800 Watts
80 Plus Certification: 80 Plus Platinum
Efficiency: 94%

Dimensions & Weight:
Width: 17.5 in
Depth: 26.7 in
Height: 3.4 in
Weight: 32.5 lbs

Availability: In Stock
Condition: Refurbished
Warranty: 90 Days
