JH147A

Description

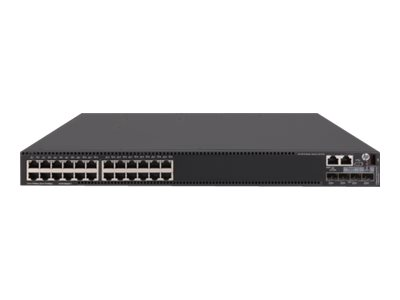

HPE JH147A 5510 24g Poe+ 4sfp+ Hi 1-slot Switch - Switch - 24 Ports - Managed - Rack-mountable.

Detail overview

HPE - 5510 24g Poe+ 4sfp+ Hi 1-slot Switch - Switch - 24 Ports - Managed - Rack-mountable (JH147A) :

Key Features :



  • Device Type : Switch - 24 Ports - Managed - Stackable
  • Enclosure Type : Rack-mountable - 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 (poe+) + 4 X 10 Gigabit Sfp+
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 740 W
  • Performance : Routing/switching Capacity : 288 Gbps ¦ Throughput : 214 Mpps
  • Jumbo Frame Support : Yes
  • Routing Protocol : Ospf, Rip, Is-is, Bgp, Vrrp, Pim-sm, Static Ip Routing, Pim-dm, Ospfv3, Pim-ssm, Ecmp, Ripng, Is-isv6, Mpls, Bidirectional Forwarding Detection (bfd)
  • Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Cli
  • Features : Layer 3 Switching, Dhcp Support, Arp Support, Mpls Support, Auto-uplink (auto Mdi/mdi-x), Ipv6 Support, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Rapid Ring Protection Protocol (rrpp) Support, Equal-cost Multipath (ecmp), Bidirectional Forwarding Detection (bfd), Stp Root Guard, Ipv4 Support
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.1x, Ieee 802.1ad, Ieee 802.1ab (lldp)
  • Ram : 2 Gb - Sdram
  • Flash Memory : 512 Mb

    Expansion / Connectivity :
  • Interfaces : 24 X 1000base-t - Rj-45 ¦ 1 X Console - Rj-45 - Management ¦ 4 X 10gbit Lan - Sfp+
  • Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
  • Installed Modules Qty (max) : 0 (installed) / 1 (max)

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max)
  • Voltage Required : Ac 120/230 V ( 50/60 Hz )

    •

    JH147A

    Description

    HPE JH147A 5510 24g Poe+ 4sfp+ Hi 1-slot Switch - Switch - 24 Ports - Managed - Rack-mountable.

    Detail overview

    HPE - 5510 24g Poe+ 4sfp+ Hi 1-slot Switch - Switch - 24 Ports - Managed - Rack-mountable (JH147A) :

    Key Features :



  • Device Type : Switch - 24 Ports - Managed - Stackable
  • Enclosure Type : Rack-mountable - 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 (poe+) + 4 X 10 Gigabit Sfp+
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 740 W
  • Performance : Routing/switching Capacity : 288 Gbps ¦ Throughput : 214 Mpps
  • Jumbo Frame Support : Yes
  • Routing Protocol : Ospf, Rip, Is-is, Bgp, Vrrp, Pim-sm, Static Ip Routing, Pim-dm, Ospfv3, Pim-ssm, Ecmp, Ripng, Is-isv6, Mpls, Bidirectional Forwarding Detection (bfd)
  • Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Cli
  • Features : Layer 3 Switching, Dhcp Support, Arp Support, Mpls Support, Auto-uplink (auto Mdi/mdi-x), Ipv6 Support, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Rapid Ring Protection Protocol (rrpp) Support, Equal-cost Multipath (ecmp), Bidirectional Forwarding Detection (bfd), Stp Root Guard, Ipv4 Support
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.1x, Ieee 802.1ad, Ieee 802.1ab (lldp)
  • Ram : 2 Gb - Sdram
  • Flash Memory : 512 Mb

    Expansion / Connectivity :
  • Interfaces : 24 X 1000base-t - Rj-45 ¦ 1 X Console - Rj-45 - Management ¦ 4 X 10gbit Lan - Sfp+
  • Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
  • Installed Modules Qty (max) : 0 (installed) / 1 (max)

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max)
  • Voltage Required : Ac 120/230 V ( 50/60 Hz )

    •
