JL321-61101

Description

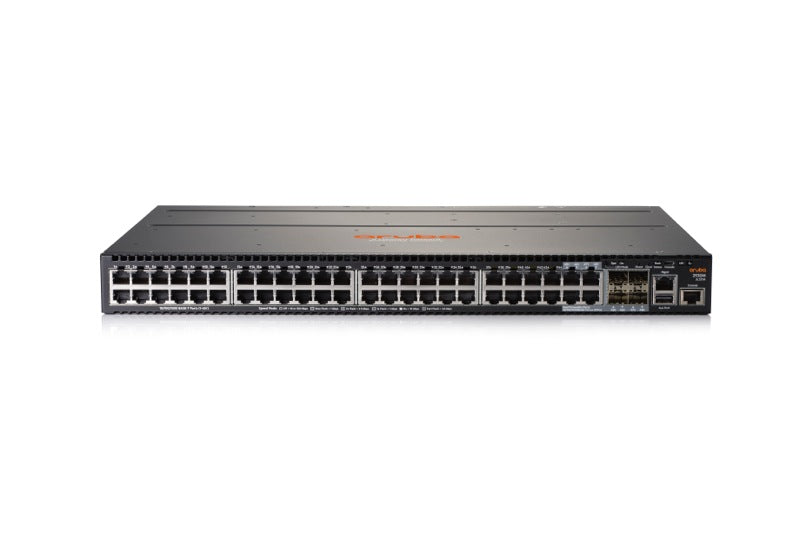

HPE JL321-61101 Aruba 2930m 48g 1 Slot Switch 48 Ports Managed Rack-mountable.

Detail overview

HPE JL321-61101 Aruba 2930m 48g 1 Slot Switch 48 Ports Managed Rack Mountable.

Key Features :



  • Device Type : Switch 48 Ports L3 Managed Stackable.
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 44 X 10/100/1000 + 4 X Combo Gigabit Sfp
  • Performance : Throughput: 112 Mpps Latency (10 Mbps): 98.5 Latency (100 Mbps): 11.8 Latency (1 Gbps): 3.1 Latency (10 Gbps): 3.4
  • Stacking Bandwidth: 100 Gbps Switching Capacity: 176 Gbps
  • Capacity : Ipv4 Routing Table Entries: 2000 Ipv6 Routing Table Entries: 1000 Rip Routes: 10000 Static Routes: 256 Ospf Routes: 200
  • Mac Address Table Size : 32768 Entries
  • Jumbo Frame Support : 9220 Bytes
    routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mldv2, Mld, Cidr
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
  • Encryption Algorithm : Md5, Ssl
  • Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
  • Features : Flow Control, Dhcp Support, Bootp Support, Vlan Support, Igmp Snooping, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Quality Of Service (qos), Dhcp Server, Front To Back Airflow, Stp Root Guard, Uni-directional Link Detection (udld), Management Information Base (mib), Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Class Of Service (cos), Type Of Service (tos), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan)
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.1ax
  • Processor : 1 X Arm Cortex-a9: 1.016 Ghz
  • Ram : 1 Gb Ddr3 Sdram
  • Flash Memory : 4 Gb

    Expansion / Connectivity
    Interfaces :
  • 44 X 1000base-t - Rj-45
  • 4 X Gigabit Lan
  • 1 X Serial (console) - Rj-45
  • 1 X Usb - Type B
  • 1 X Management - Rj-45

    Expansion Slots :
  • 1 (total) / 1 (free) X Stacking Module Slot
  • 1 (total) / 1 (free) X Expansion Slot

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max)
  • Voltage Required : Ac 120/230 V (50/60 Hz)

    •



    JL321-61101

    Description

    HPE JL321-61101 Aruba 2930m 48g 1 Slot Switch 48 Ports Managed Rack-mountable.

    Detail overview

    HPE JL321-61101 Aruba 2930m 48g 1 Slot Switch 48 Ports Managed Rack Mountable.

    Key Features :



  • Device Type : Switch 48 Ports L3 Managed Stackable.
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 44 X 10/100/1000 + 4 X Combo Gigabit Sfp
  • Performance : Throughput: 112 Mpps Latency (10 Mbps): 98.5 Latency (100 Mbps): 11.8 Latency (1 Gbps): 3.1 Latency (10 Gbps): 3.4
  • Stacking Bandwidth: 100 Gbps Switching Capacity: 176 Gbps
  • Capacity : Ipv4 Routing Table Entries: 2000 Ipv6 Routing Table Entries: 1000 Rip Routes: 10000 Static Routes: 256 Ospf Routes: 200
  • Mac Address Table Size : 32768 Entries
  • Jumbo Frame Support : 9220 Bytes
    routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mldv2, Mld, Cidr
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
  • Encryption Algorithm : Md5, Ssl
  • Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
  • Features : Flow Control, Dhcp Support, Bootp Support, Vlan Support, Igmp Snooping, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Quality Of Service (qos), Dhcp Server, Front To Back Airflow, Stp Root Guard, Uni-directional Link Detection (udld), Management Information Base (mib), Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Class Of Service (cos), Type Of Service (tos), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan)
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.1ax
  • Processor : 1 X Arm Cortex-a9: 1.016 Ghz
  • Ram : 1 Gb Ddr3 Sdram
  • Flash Memory : 4 Gb

    Expansion / Connectivity
    Interfaces :
  • 44 X 1000base-t - Rj-45
  • 4 X Gigabit Lan
  • 1 X Serial (console) - Rj-45
  • 1 X Usb - Type B
  • 1 X Management - Rj-45

    Expansion Slots :
  • 1 (total) / 1 (free) X Stacking Module Slot
  • 1 (total) / 1 (free) X Expansion Slot

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max)
  • Voltage Required : Ac 120/230 V (50/60 Hz)

    •
