JL581A

Description

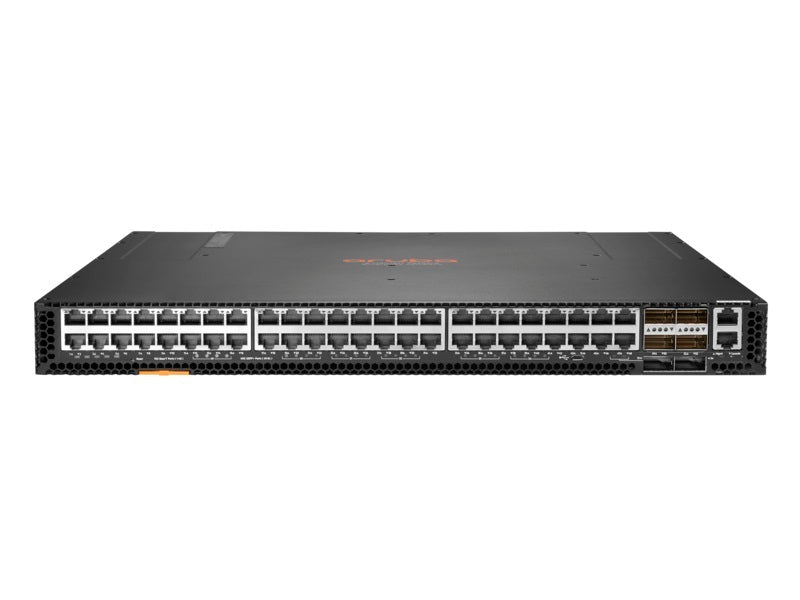

HPE JL581A Aruba 8320 48p 1g/10gbase-t And 6p 40g Qsfp+ With X472 5 Fans 2 Power Supply Switch Bundle

Detail overview

HPE JL581A Aruba 8320 48p 1g/10gbase-t And 6p 40g Qsfp+ With X472 5 Fans 2 Power Supply Switch Bundle :

Key Features :



  • Device Type : Switch - 48 Ports - L3 - Managed - With X472 5 Fans 2 Power Supply
  • E4nclosure Type : Rack-mountable 1u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 48 X 1 Gigabit / 10 Gigabit Ethernet + 6 X 40 Gigabit Qsfp+
  • Performance : Switching Capacity: 2.5 Tbps ¦ Forwarding Performance: 1.905 Mpps
  • Capacity : Virtual Interfaces (vlans) Per Port For 802.1q: 4096
  • Mac Address Table Size : 14k Entries
  • Jumbo Frame Support : 9kb
  • Routing Protocol : Ospf, Igmpv2, Igmp, Vrrp, Igmpv3, Gre, Static Ipv6 Routing, Ecmp
  • Remote Management Protocol : Snmp, Rmon, Snmp 3, Snmp 2c, Tftp, Ssh, Cli, Sftp
  • Encryption Algorithm : Fips 140-2
  • Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Vpn Support, Ipv6 Support, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Ipv4 Support, Link Aggregation Control Protocol (lacp), Redundant Hot Swappable Fans, Packet Storm Protection, Strict Priority (sp), Loopback, Bridge Protocol Data Unit (bpdu), Multi-chassis Link Aggregation (mlag), Protocol Independent Multicast (pim)
  • Compliant Standards : Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1t, Ieee 802.1ae, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3ba, Ieee 802.1ax
  • Processor : 1: 2 Ghz
  • Ram : 16 Gb
  • Flash Memory : 8 Mb

    Expansion / Connectivity :
    Interfaces :
  • 48 X 1/10gbit Lan
  • 1 X Serial Rj-45
  • 1 X Console (micro-usb)
  • 1 X Rj-45
  • 6 X 40gbit Lan Qsfp+

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 2 (installed) / 2 (max)
  • Power Redundancy : Yes
  • Power Redundancy Scheme : 1+1
  • Power Provided : 400 Watt
  • Voltage Required : Ac 120/230 V (50/65 Hz)
  • Power Consumption Operational : 348 Watt

    •
